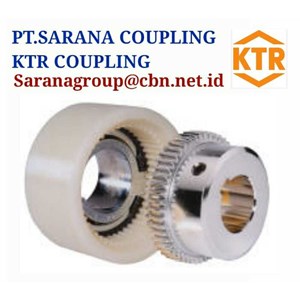

Detail KTR Coupling Bowex M 14 Yunior
PT SARANA COUPLING KTR
EMAIL saranagroup@cbn.net.id
KTR ROTEX COUPLING GR 19 KTR ROTEX COUPLING GR 24 KTR ROTEX COUPLING GR 28 KTR ROTEX COUPLING GR 38 KTR ROTEX COUPLING GR 42 KTR ROTEX COUPLING GR 48 KTR ROTEX COUPLING GR 55 KTR ROTEX COUPLING GR 65 KTR ROTEX COUPLING GR 75 KTR ROTEX COUPLING GR 90 KTR ROTEX COUPLING GR 100 KTR ROTEX COUPLING GR 110 KTR ROTEX COUPLING GR 125 KTR ROTEX COUPLING GR 140

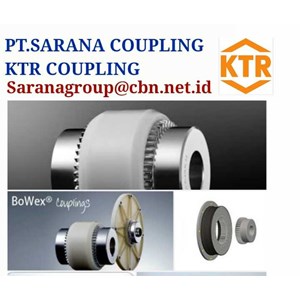

Product characteristics Curved tooth plug-in coupling ( two-part) made from nylon Maintenance-free due to material combination nylon Compensation for shaft misalignment; axial - radial - angular Low own weight as well as low flywheel torques Axial plug-in - easy assembly Operative range -25° C to + 100° C Available from stock with finish bore for standard shafts Including feather keyway according to DIN 6885 page 1 and thread for setscrew Tolerance of the bore + 0.05 - 0.1 feather keyway ± 0.08 Coupling description BoWex® Curved-tooth gear couplings® are flexible shaft connections for a positive torque transmission and specifically suitable to compensate for axial, radial and angular shaft misalignment. According to the well-known effect of curved-tooth gear couplings any edge pressure in the spline in case of angular and radial displacements is avoided so that BoWex couplings are almost free from wear.
